Unroll

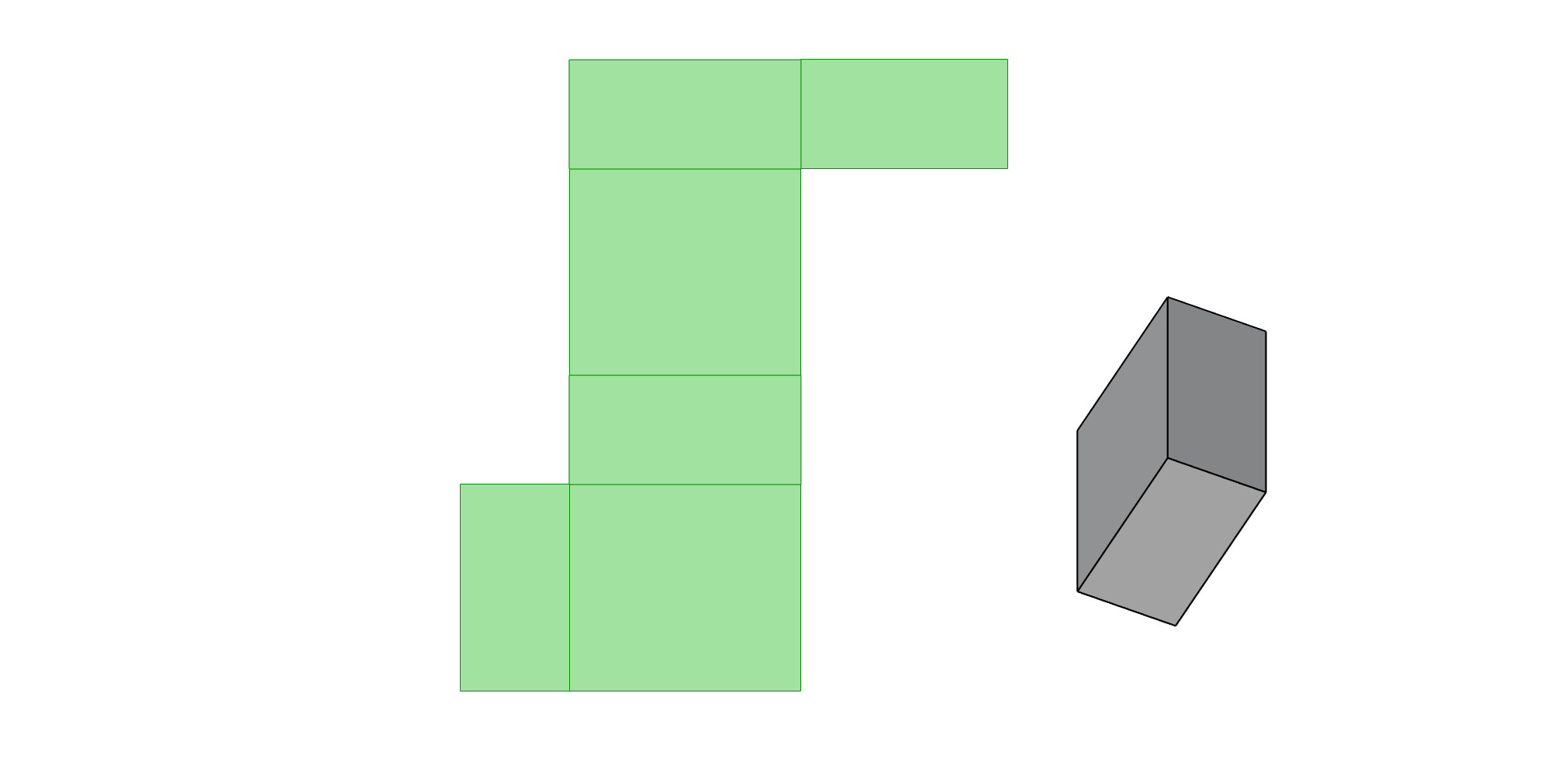

Unrolls a developable Brep or mesh to flat, carrying along its curves, points and text.

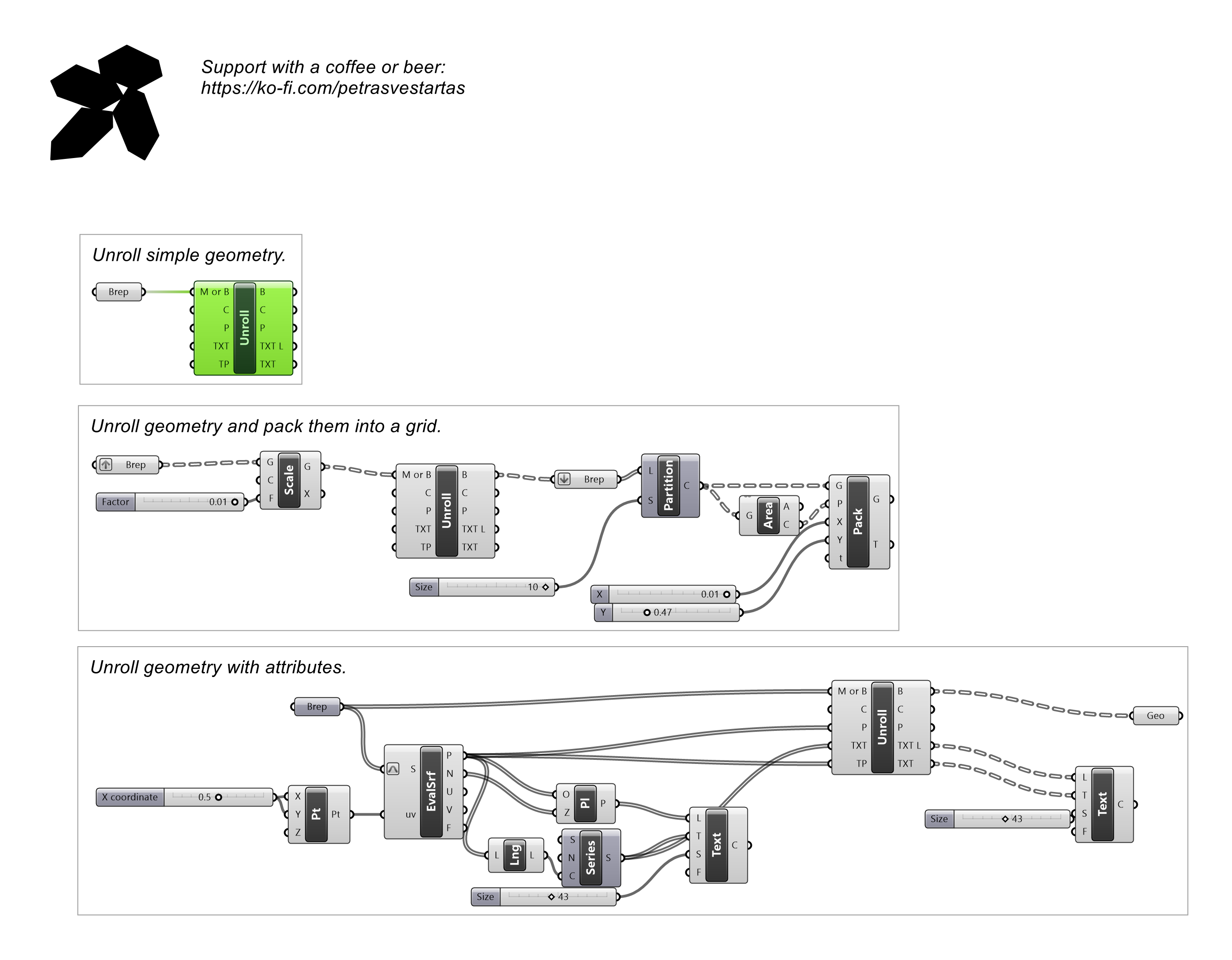

Example
Files to download:
Inputs
| Parameter | Type | Access | Description |
|---|---|---|---|
| Mesh or Brep (M or B) | Generic | item | Mesh or Brep to unroll. |
| Curves (C) | Curve | list | Curves to unroll along with the surface |
| Points (P) | Point | list | Points to unroll along with the surface |
| Text (TXT) | Text | list | Text labels to unroll along with the surface |
| Text point (TP) | Point | list | Anchor points for the text labels |
Outputs
| Parameter | Type | Description |
|---|---|---|
| Brep (B) | Brep | Unrolled Brep |
| Curves (C) | Curve | Unrolled curves |
| Points (P) | Point | Unrolled points |
| TextDotsLocation (TXT L) | Generic | Unrolled text label locations |
| TextDots (TXT) | Generic | Unrolled text labels |
