Bounding Box Edges
Returns the two base edges and their lengths for an object's oriented bounding box.

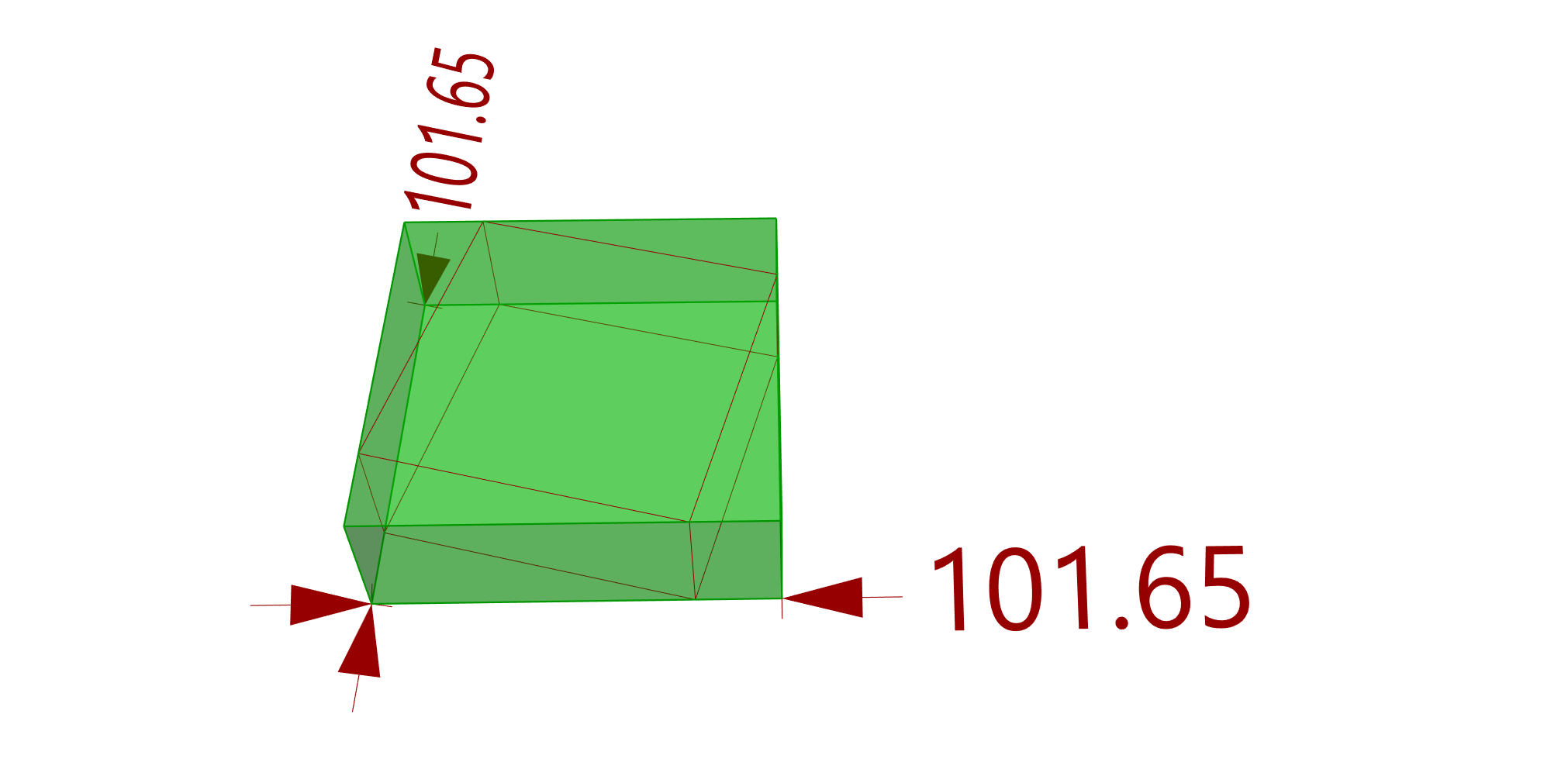

Example
Files to download:
Inputs
| Parameter | Type | Access | Description |
|---|---|---|---|
| G (Geo) | Geometry | item | Geometry to bound |
| P (Plane) | Plane | item | Orientation plane for the box |
Outputs
| Parameter | Type | Description |
|---|---|---|
| L0 (Line0) | Line | First bounding box base edge |
| L1 (Line1) | Line | Second bounding box base edge |
| D0 (Dist0) | Number | Length of the first base edge |
| D1 (Dist1) | Number | Length of the second base edge |
| B (Box) | Box | Oriented bounding box |
