Simplify
Reduces a closed curve's vertex count, auto-offsetting outward just enough that the original stays inside - so nested parts never overlap.

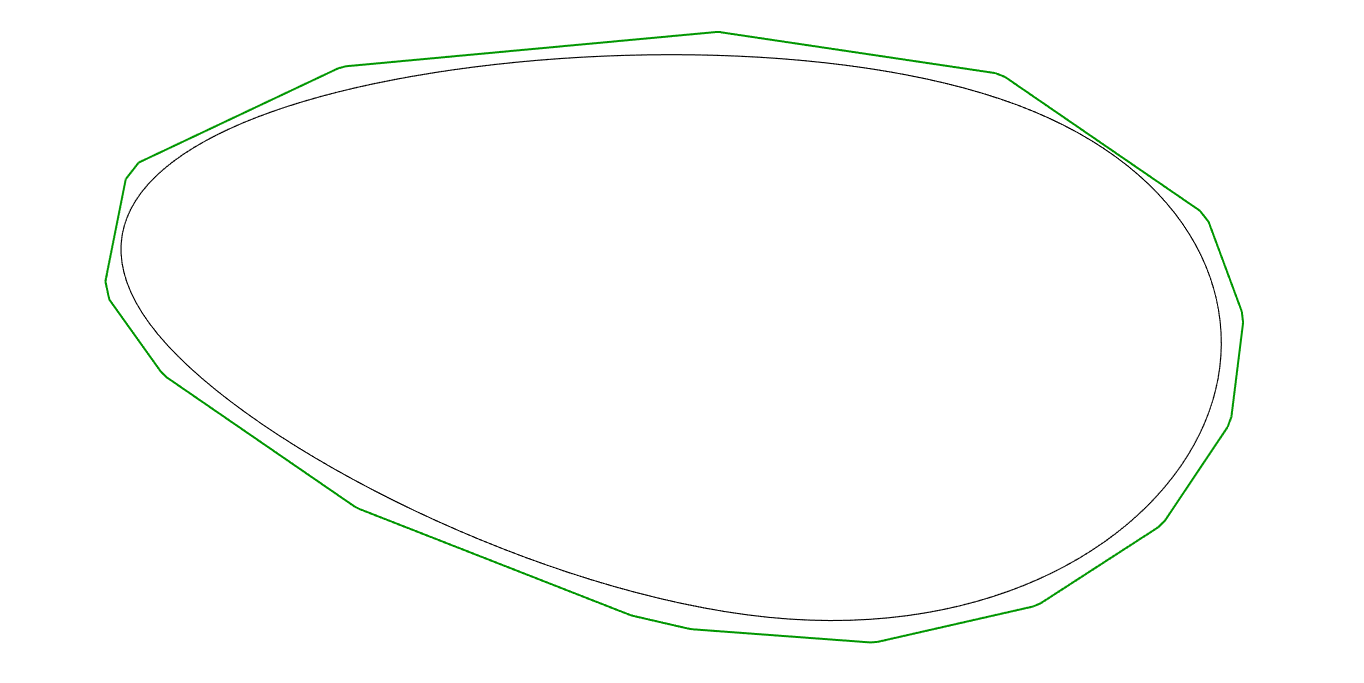

Example
Files to download:

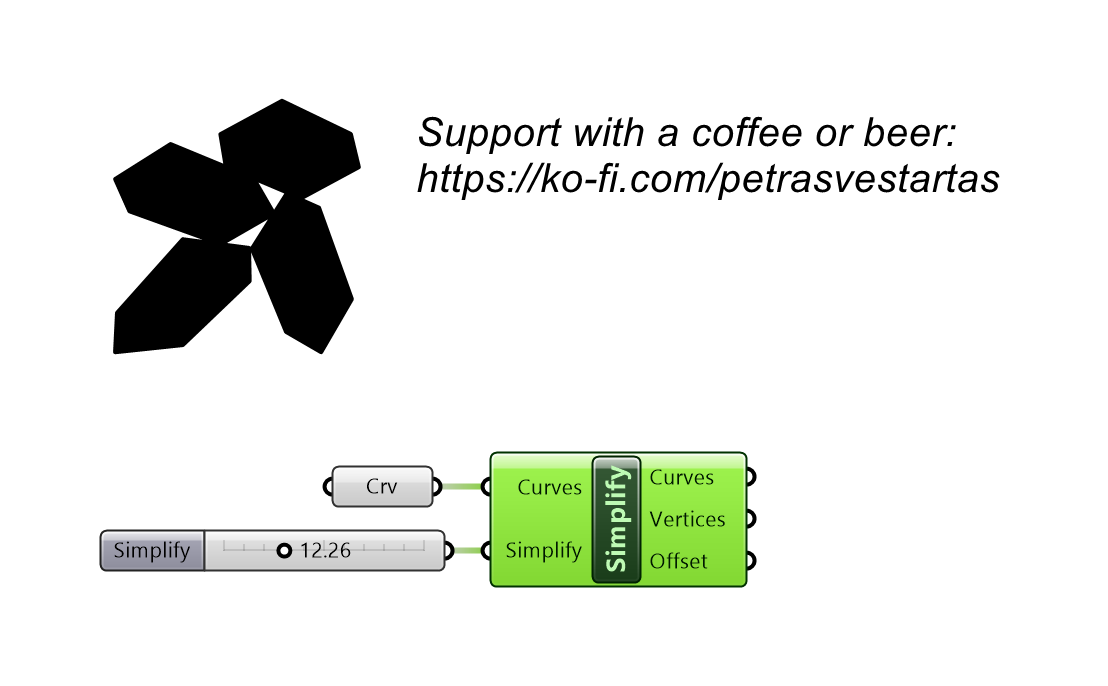

Inputs
| Parameter | Type | Access | Description |
|---|---|---|---|
| Curves | Curve | list | Closed curves to simplify. |
| Simplify | Number | item | Simplification amount (Douglas-Peucker distance, model units): how much detail to drop. Bigger = fewer vertices. The outward offset needed to keep the original enclosed is computed AUTOMATICALLY (always <= this value) and reported on the Offset output. 0 = clean only (no reduction). Default: 0.5. |
Outputs
| Parameter | Type | Description |
|---|---|---|
| Curves | Curve | Simplified closed polylines (each GUARANTEED to contain its original). |
| Vertices | Integer | Vertex count of each simplified curve. |
| Offset | Number | The outward distance auto-applied to each curve so the original stays inside (model units). 0 = none needed. |
