Sheets
Defines the sheets to nest onto (with optional holes) from closed polylines; supports gap, rows and copies.

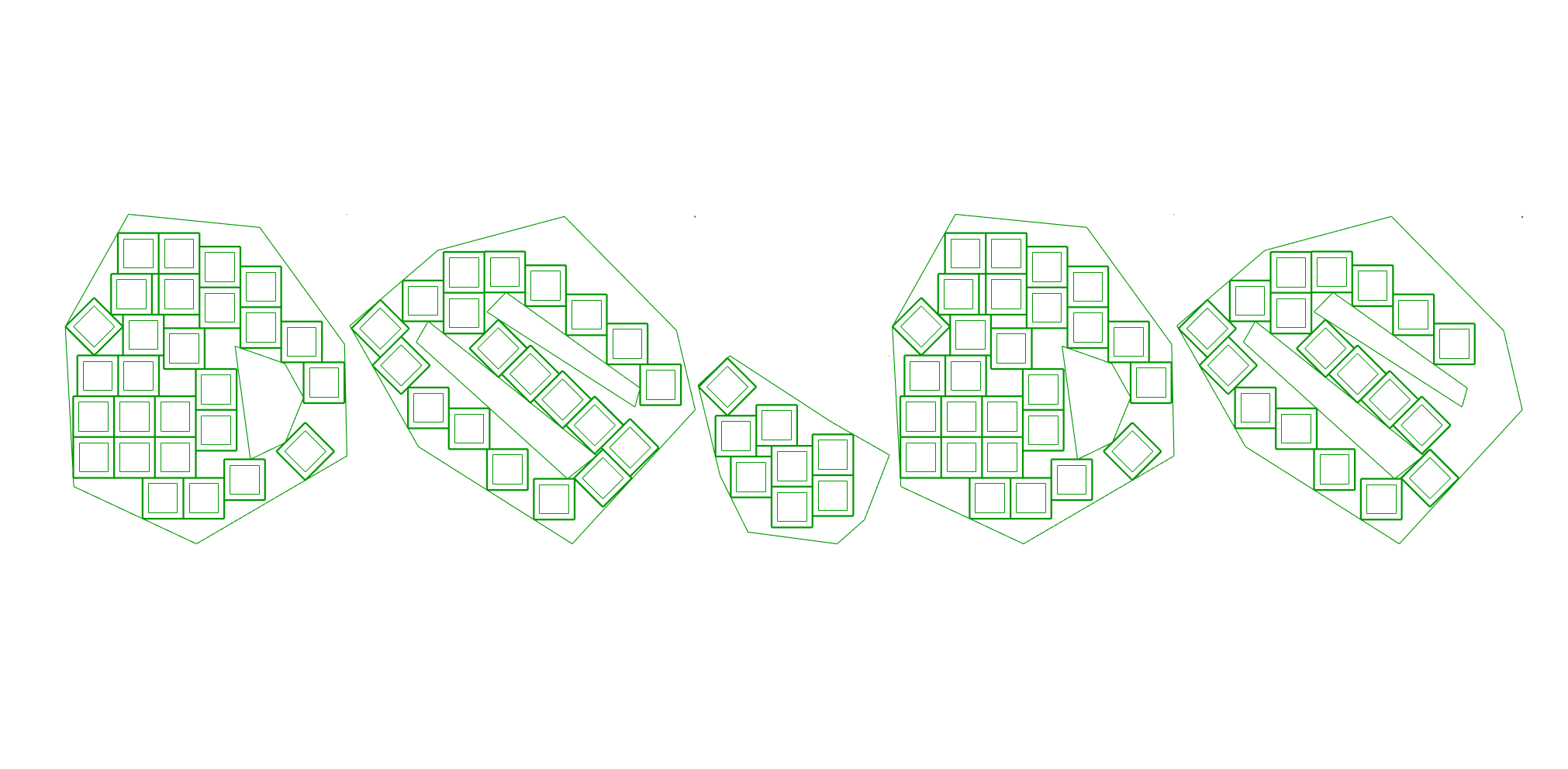

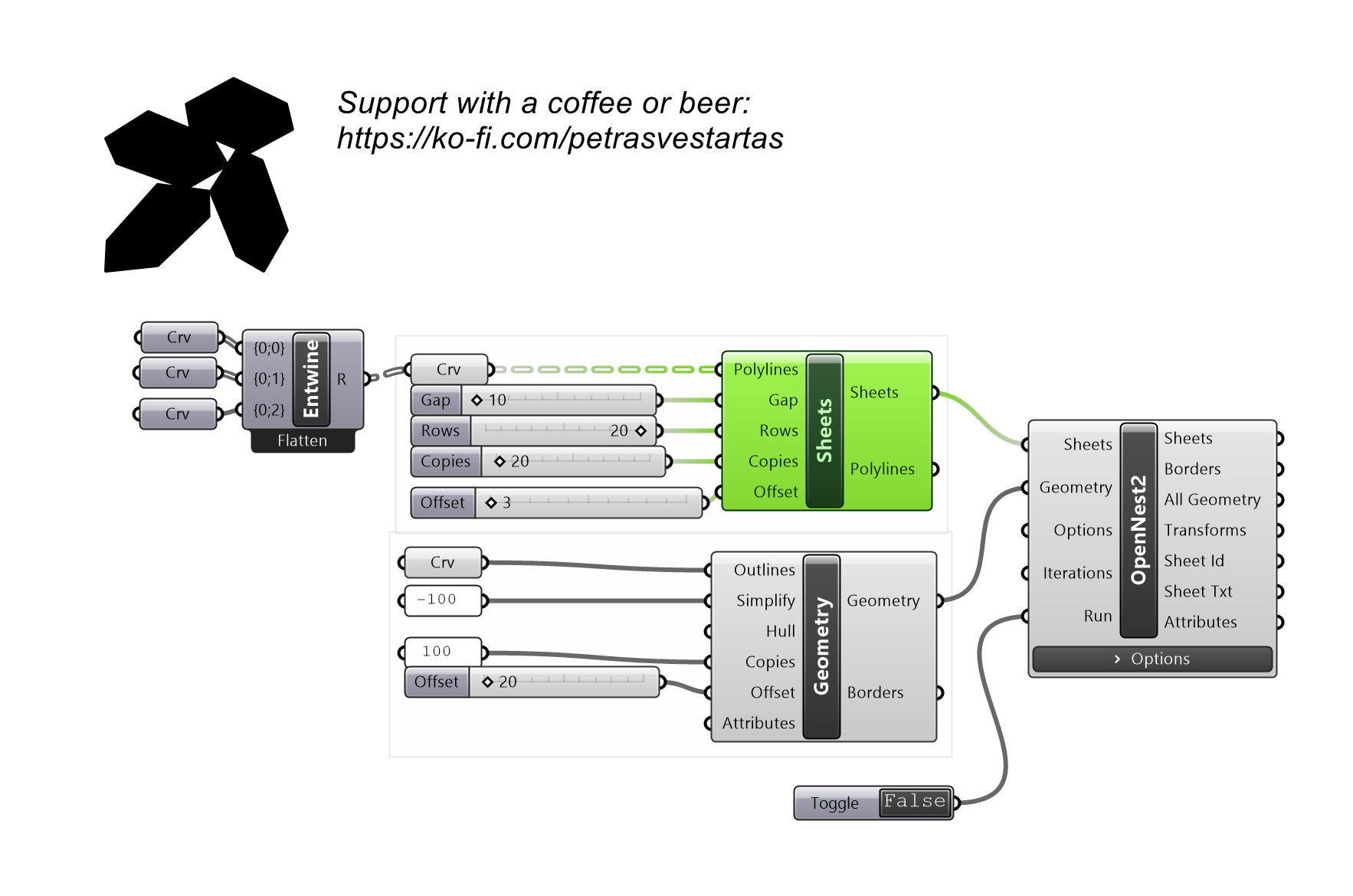

Example
Files to download:
Inputs
| Parameter | Type | Access | Description |
|---|---|---|---|
| Polylines | Curve | tree | Closed sheet polylines, with optional holes. |
| Gap | Number | list | Gap between sheets. Default: 0.1. |
| Rows | Number | list | Number of sheets per row before partitioning. |
| Copies | Number | item | Number of copies of the same sheet. |
| Offset | Number | item | Inward MARGIN for nesting (model units; 0 = OFF, fast). Parts keep this setback from the sheet edge; any sheet holes grow by it. Default: 0. |
Outputs
| Parameter | Type | Description |
|---|---|---|
| Sheets | Generic | OpenNest nest_sheets data type. |
| Polylines | Curve | Generated sheet outline polylines. |
