Principal Component Analysis

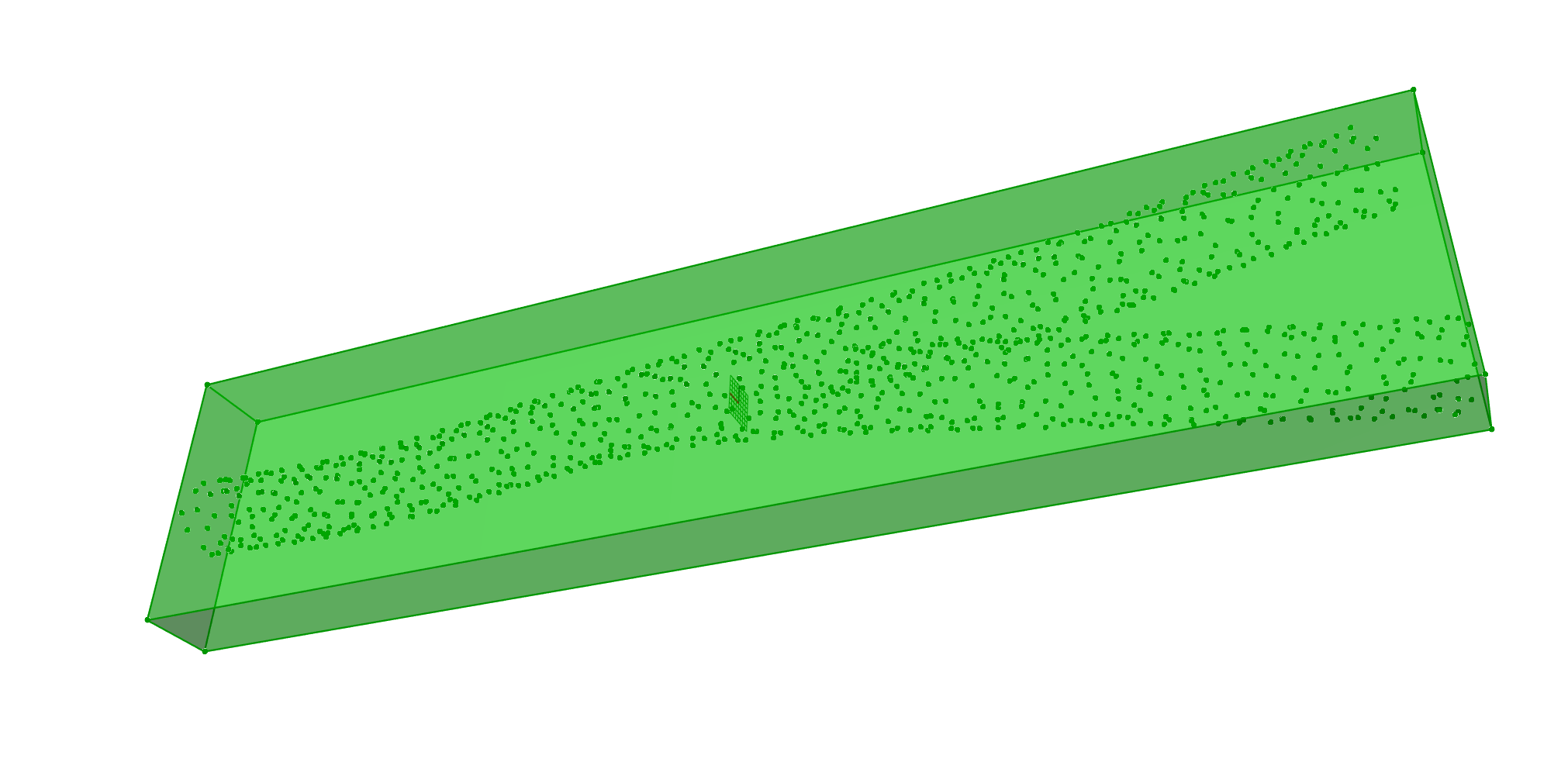

Returns an oriented bounding box aligned to a point set's edges — a minimum‑area rectangle for flat (planar) inputs and a minimum‑volume box for solids — together with the aligned plane and the box's 8 corner points. Unlike a plain covariance‑PCA, the box stays edge‑aligned even for cubes, squares, and other symmetric shapes.
Example
Files to download:
Inputs
| Parameter | Type | Access | Description |
|---|---|---|---|
| Points (P) | Point | list | Point set to analyze |
Outputs
| Parameter | Type | Description |
|---|---|---|
| P (Plane) | Plane | Principal-axis aligned plane |
| B (Box) | Box | Oriented bounding box |
| Pt (Points) | Point | Bounding box corner points |
