Rhino Objects
Reads referenced Rhino objects, with attributes such as text, into planar Breps for nesting.

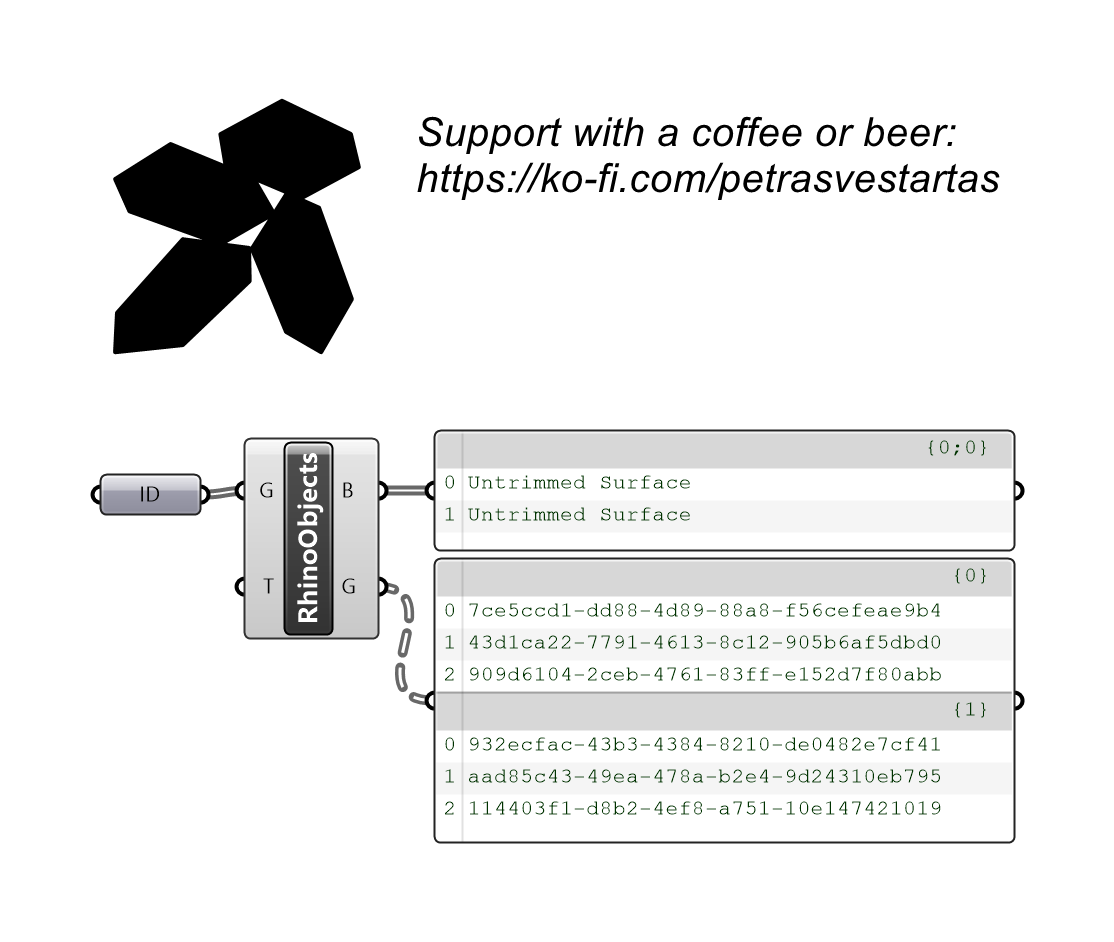

Example
Files to download:
Inputs
| Parameter | Type | Access | Description |
|---|---|---|---|
| Geometry as guid (G) | Generic | tree | Referenced geometry as guid (can be mesh, brep, curves in one list) |
| T | Number | item | Tolerance Default: 0.01. |
Outputs
| Parameter | Type | Description |
|---|---|---|
| Breps (B) | Brep | Planar Breps |
| Geometry as guid (G) | Generic | Referenced geometry as guid (can be mesh, brep, curves in one list) |
