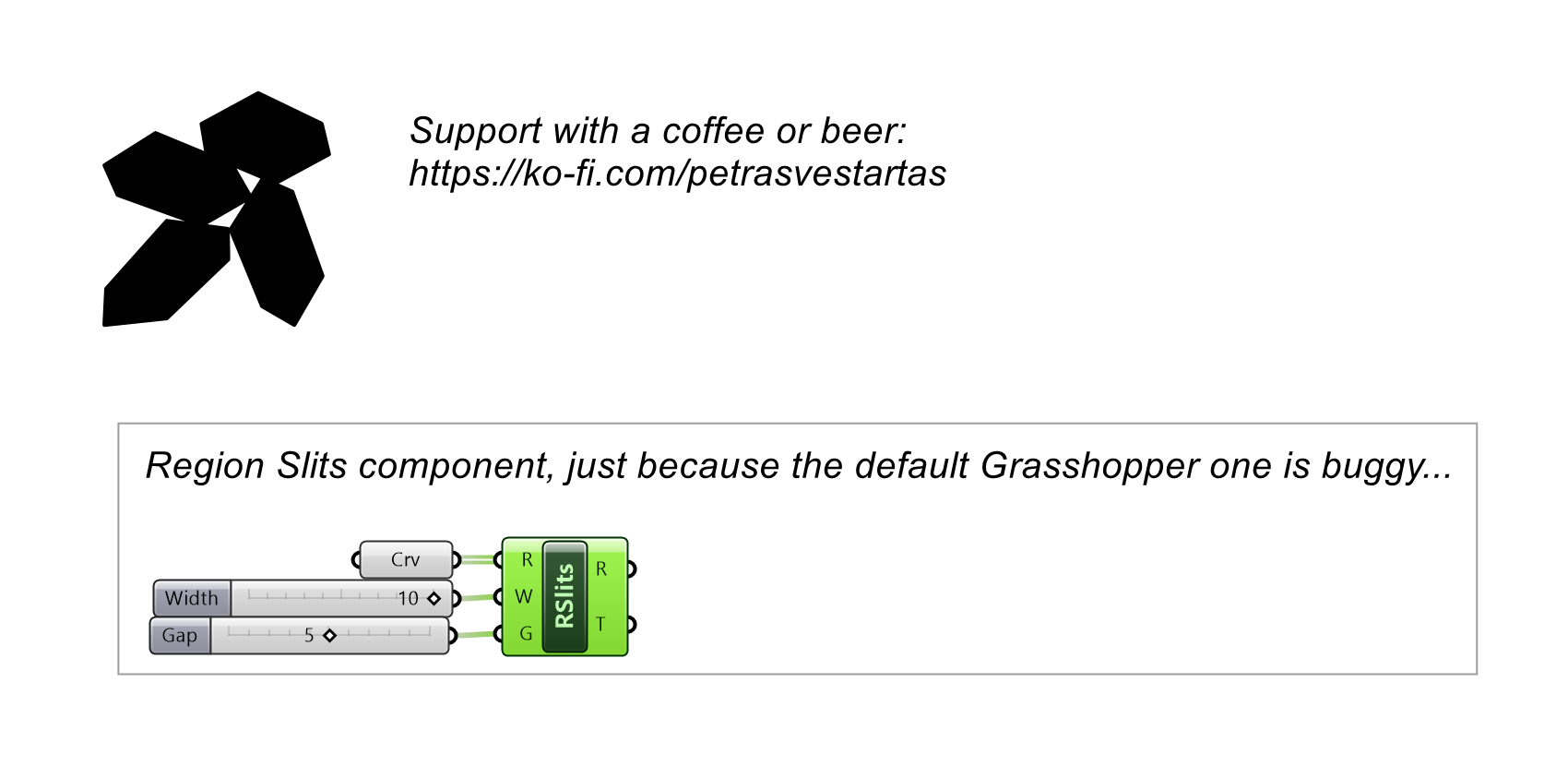

Region Slits
Cuts interlocking slits where planar regions meet (a fixed version of the native component).

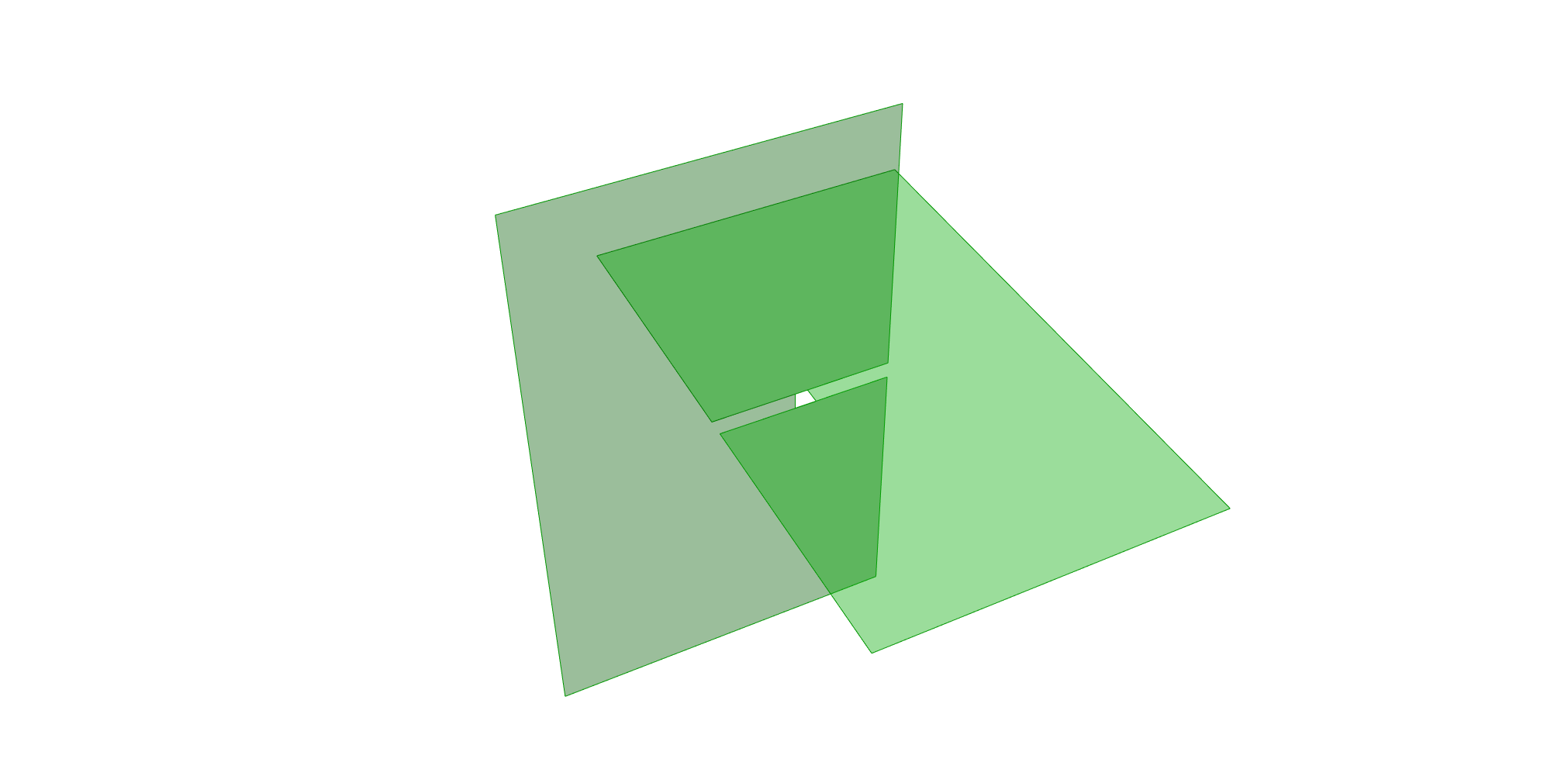

Example
Files to download:
Inputs
| Parameter | Type | Access | Description |
|---|---|---|---|
| Regions (R) | Curve | list | Planar regions to intersect |
| Width (W) | Number | item | Width of slits Default: 0. |
| Gap (G) | Number | item | Additional gap size at slit meeting points Default: 0. |
Outputs
| Parameter | Type | Description |
|---|---|---|
| Regions (R) | Surface | Regions with slits |
| Topology (T) | Integer | Slit topology |
