Pack Objects
Lays objects out in a row, orienting each from 3D to 2D with a chosen spacing.

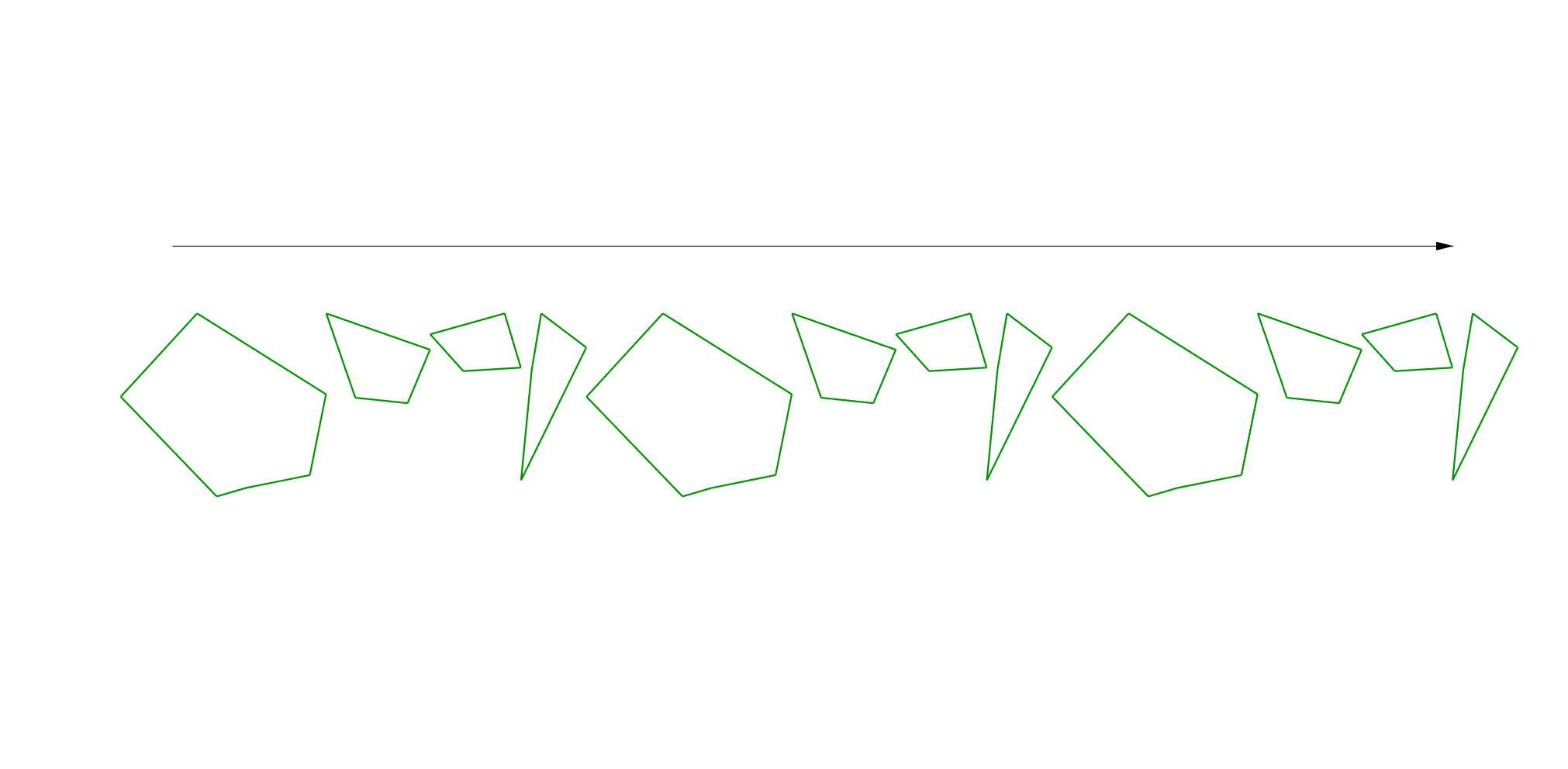

Example
Files to download:
Inputs
| Parameter | Type | Access | Description |
|---|---|---|---|
| Geo (G) | Geometry | tree | Objects to pack |
| Plane (P) | Plane | tree | Base plane to orient from 3D to 2D |
| X | Number | item | Offset Distance, negative number will not include bbox Default: 1. |
| Y | Number | item | Offset Distance, negative number will not include bbox Default: 1. |
| tolerance (t) | Number | item | Rotates objects by t in radians until Math.Pi and takes one with min bounding box Default: 0. |
Outputs
| Parameter | Type | Description |
|---|---|---|
| Geo (G) | Geometry | Packed objects |
| Transformation (T) | Transform | Transform applied to each object |
