from compas_viewer import Viewer
import compas
from compas.geometry import Box
from compas.geometry import Circle
from compas.geometry import Cylinder
from compas.geometry import Frame
from compas.geometry import NurbsCurve
from compas.geometry import NurbsSurface
from compas.geometry import Plane
from compas.geometry import Point
from compas.geometry import Sphere
from compas.geometry import Vector
from compas_occt.brep import OCCBrep
from compas_occt.brep import OCCBrepEdge
from compas_occt.brep import OCCBrepFace
from compas_occt.brep import OCCBrepLoop
def brep_with_hole():
points = [
[Point(0, 0, 0), Point(1, 0, 0), Point(2, 0, 0), Point(3, 0, 0)],
[Point(0, 1, 0), Point(1, 1, 2), Point(2, 1, 2), Point(3, 1, 0)],
[Point(0, 2, 0), Point(1, 2, 2), Point(2, 2, 2), Point(3, 2, 0)],
[Point(0, 3, 0), Point(1, 3, 0), Point(2, 3, 0), Point(3, 3, 0)],
]
surface = NurbsSurface.from_points(points=points)
circle = Circle(
0.5,
frame=Frame(
Point(1.5, 1.5, 1.5),
Vector(1, 0, 0),
Vector(0, 1, 0),
),
)
curve = NurbsCurve.from_circle(circle)
edge = OCCBrepEdge.from_curve_and_surface(curve=curve, surface=surface)
loop = OCCBrepLoop.from_edges([edge])
face = OCCBrepFace.from_surface(surface)
face.add_loop(loop)
brep = OCCBrep.from_brepfaces([face])
return brep
def brep_with_holes():
circle1 = Circle(1.0, frame=Frame([2, 2, 0]))
circle2 = Circle(2.0, frame=Frame([-2, -2, 0]))
circle3 = Circle(0.5, frame=Frame([2, -2, 0]))
loop1 = OCCBrepLoop.from_edges([OCCBrepEdge.from_circle(circle1)])
loop2 = OCCBrepLoop.from_edges([OCCBrepEdge.from_circle(circle2)])
loop3 = OCCBrepLoop.from_edges([OCCBrepEdge.from_circle(circle3)])
face = OCCBrepFace.from_plane(Plane.worldXY(), domain_u=(-5, 5), domain_v=(-5, 5))
face.add_loops([loop1, loop2, loop3], reverse=True)
brep = OCCBrep.from_brepfaces([face])
return brep

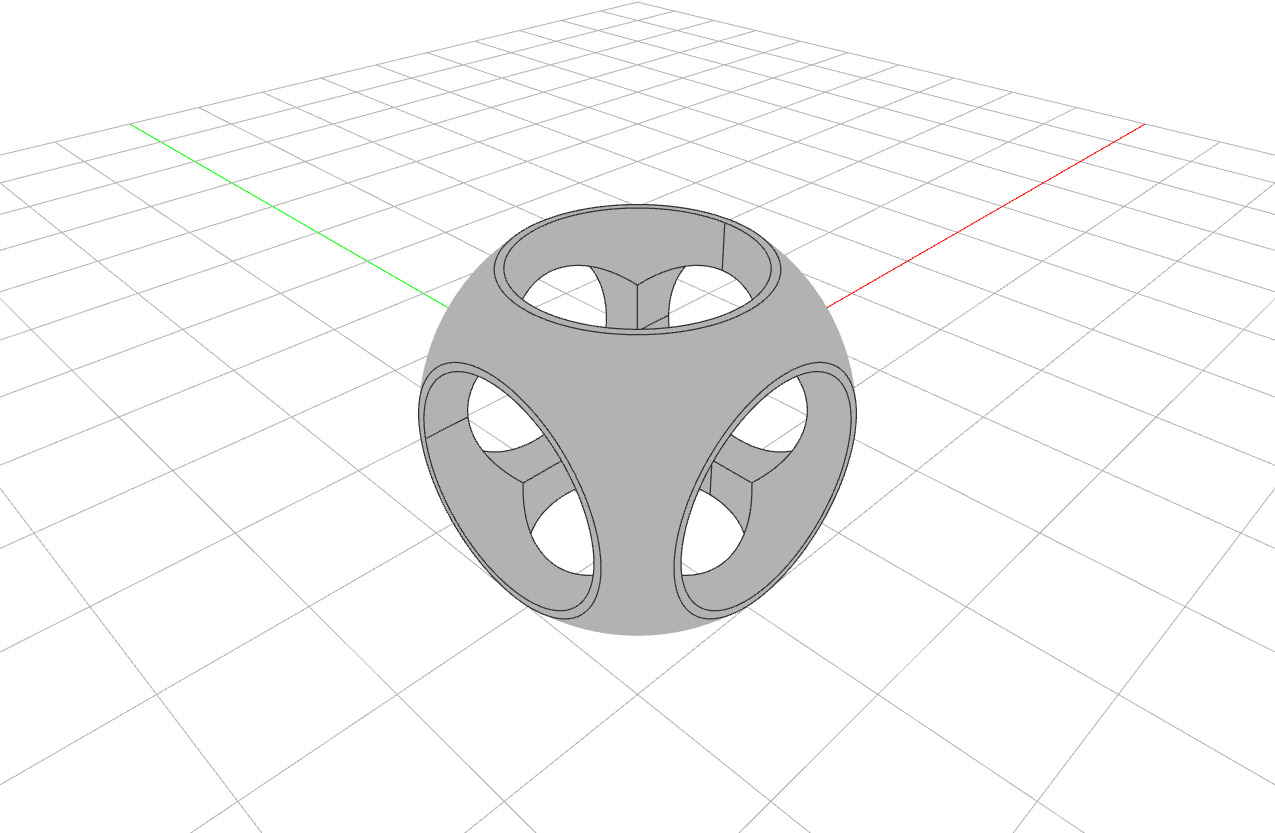

def brep_from_booleans():
R = 1.4
box = Box(2 * R).to_brep()
sphere = Sphere(radius=1.25 * R).to_brep()
cylx = Cylinder(radius=0.7 * R, height=3 * R, frame=Frame.worldYZ()).to_brep()
cyly = Cylinder(radius=0.7 * R, height=3 * R, frame=Frame.worldZX()).to_brep()
cylz = Cylinder(radius=0.7 * R, height=3 * R, frame=Frame.worldXY()).to_brep()
brep = OCCBrep.from_boolean_intersection(box, sphere)
brep = OCCBrep.from_boolean_difference(brep, cylz)
brep = OCCBrep.from_boolean_difference(brep, cylx)
brep = OCCBrep.from_boolean_difference(brep, cyly)
return brep
# =============================================================================
# Dump/Load
# =============================================================================
# brep = OCCBrep.from_box(Box(1))
# brep = OCCBrep.from_sphere(Sphere(1.0))
# brep = OCCBrep.from_cylinder(Cylinder(1.0, 2.0))
brep = brep_from_booleans()
# brep = brep_with_hole()
# brep = brep_with_holes()
brep: OCCBrep = compas.json_loads(compas.json_dumps(brep)) # type: ignore
# =============================================================================
# Viz
# =============================================================================
viewer = Viewer()
viewer.scene.add(brep)
viewer.show()
